ESD Flooring Bangalore | Anti-Static Epoxy Floor Coating India

ESD Flooring Bangalore | Anti-Static Epoxy Floor Coating India
Electrostatic Control Flooring — ESD Floor Coating India

ESD Floor System —
Anti-Static Epoxy Flooring
for Electronics & IT Facilities

Protect sensitive components from electrostatic discharge with anti static floor coating for electronics factory and semiconductor plant use. IEC 61340-5-1 compliant. Engineered for electronics manufacturing, data centres, and semiconductor facilities in Bangalore.

Request ESD Assessment →

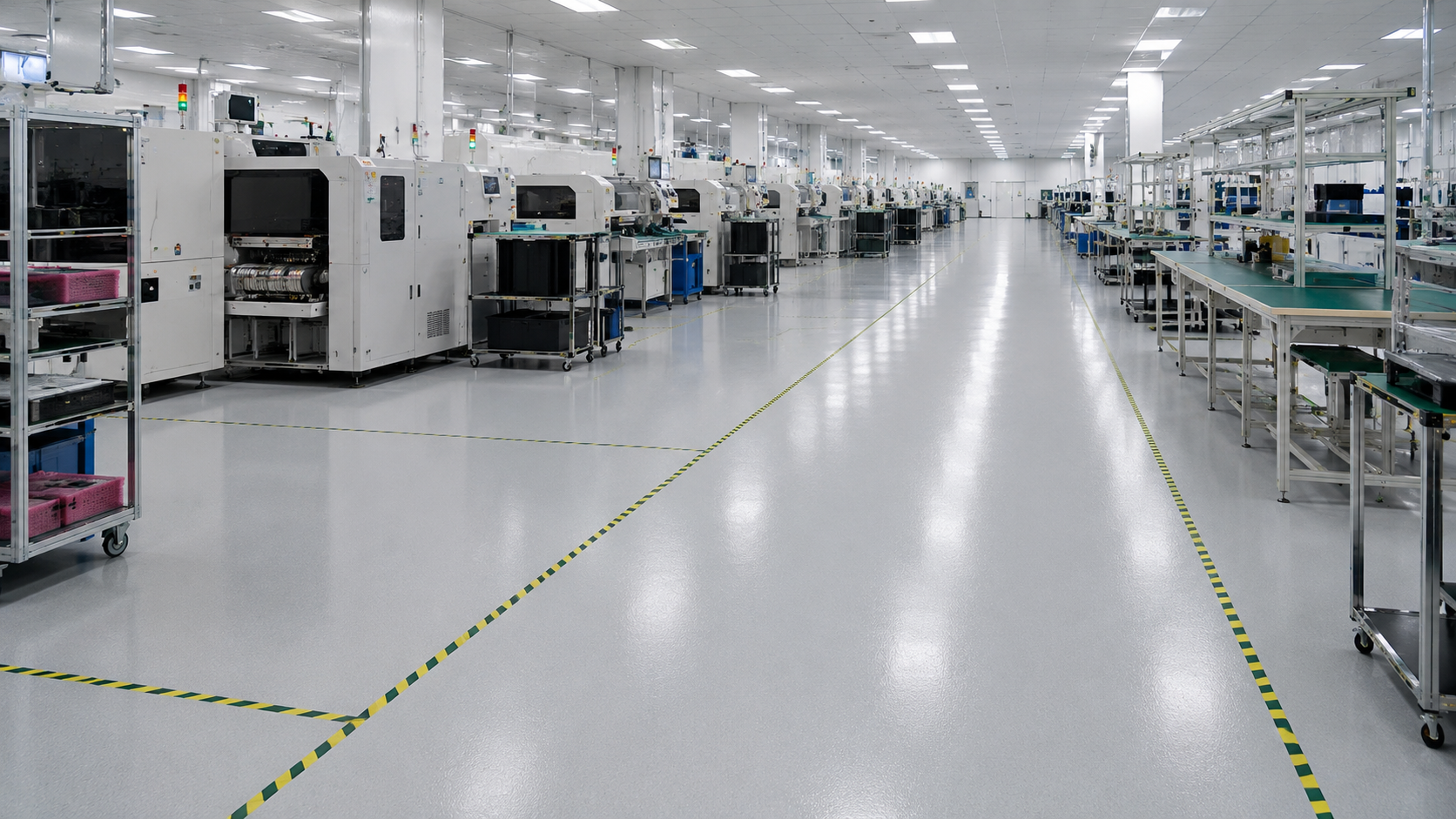

ESD floor coating india for a Bangalore electronics factory - Floorzy anti-static epoxy flooring system
IEC
61340-5-1 compliant
10⁹Ω
Max resistance (SD class)
25%
Component failures from ESD
₹90
Starting per sq.ft
Quick Answer — What is an ESD Floor System?

An ESD (Electrostatic Discharge) floor system is a specialised epoxy flooring with controlled electrical resistance that safely dissipates electrostatic charges from people, equipment, and materials to a ground point. This prevents ESD events damaging sensitive electronic components. ESD floors are classified as conductive floor coating for electronics industry use (10⁴–10⁶ Ω) or static dissipative floor coating (10⁶–10⁹ Ω) per IEC 61340-5-1 — with Floorzy specifying esd floor coating for cleanroom manufacturing and semiconductor plant environments alike.

⚡
Component Protection
Prevents ESD events responsible for 25–35% of unexplained electronics component failures in manufacturing.
🔌
Controlled Dissipation
Copper earthing grid provides a permanent, reliable dissipation path from floor to facility earth throughout the EPA.
📋
IEC 61340 Certified
Installed and tested to IEC 61340-5-1 and IEC 61340-4-1. Test certificate provided on completion.
🏭
Operational Install
Section-by-section installation in working electronics factories — no full facility shutdown required.
💨
Dust-Free Surface
Fully sealed, seamless, non-porous epoxy eliminates concrete dust contamination critical in electronics production environments.
🎨
EPA Integration
A seamless, non-porous surface that integrates with your ESD control programme including wrist straps, ESD footwear, grounding points, and EPA signage.
Specifications

ESD System Technical Data

As one of Bangalore's established esd floor coating india providers — and among the more technically rigorous floor coating companies in the region — Floorzy specifies each project to IEC 61340 requirements, whether you need conductive floor coating for electronics industry use or static dissipative floor coating for general assembly. Below is the full technical specification.

ParameterSpecification
System TypeAnti-static / static dissipative epoxy with conductive primer
Electrical ResistancePoint-to-point: 10⁴–10⁹ Ω (per IEC 61340-4-1)
SD Classification10⁶–10⁹ Ω (static dissipative)
C Classification10⁴–10⁶ Ω (conductive)
EarthingCopper foil grid connected to facility earth point
Thickness2–3 mm
Compressive Strength>50 N/mm²
Testing StandardIEC 61340-4-1 / ANSI/ESD S7.1
Test CertificateProvided on completion
CostFrom ₹90/sq.ft installed
Applications

ESD Flooring Use Cases

From anti static floor coating for electronics factory lines to esd floor coating for cleanroom manufacturing, Floorzy's ESD systems serve every facility type where electrostatic control is mission-critical.

💻
PCB Assembly
Electronics assembly lines requiring full EPA control from floor to operator
🖥️
Data Centres
Server rooms and data halls requiring static control and dust-free environment
🔬
Semiconductor
Anti static floor coating for semiconductor plant wafer fabrication and packaging areas with extreme ESD sensitivity requirements
🛡️
Defence Electronics
Defence avionics, radar, and electronic warfare equipment manufacturing
🏥
Medical Devices
Medical electronics and diagnostic equipment assembly areas
📱
IT Hardware
IT hardware manufacturing, assembly, and testing facilities
FAQs

ESD Flooring Questions

What is the difference between static dissipative and conductive flooring?
Static Dissipative (SD): Resistance 10⁶–10⁹ Ω per IEC 61340-5-1 — provides controlled dissipation path, suitable for most electronics assembly environments. Conductive (C): Resistance 10⁴–10⁶ Ω — faster dissipation, required in explosive atmosphere areas and some defence applications. Floorzy specifies the appropriate classification based on your facility's ESD control requirements.
Does ESD flooring work with normal shoes?
No. ESD flooring must be used with ESD-approved footwear (ESD shoes, shoe covers, or heel straps) to complete the dissipation path from the human body through the floor to earth. Without ESD footwear, the floor cannot dissipate body charges effectively.
How is the ESD floor connected to earth?
During installation, Floorzy installs a copper foil grid beneath the floor coating, connected by earth cables to the facility's dedicated earth bus bar or earth rod. This provides a permanent, reliable connection throughout the floor area — documented in the project handover pack.
How do you test ESD flooring after installation?
Floorzy conducts electrical resistance testing per IEC 61340-4-1 and ANSI/ESD S7.1 using a calibrated resistance meter. Measurements include point-to-point resistance across the floor and resistance-to-earth from multiple test points. Results are documented in a test certificate provided to the client.
What is the esd epoxy floor coating cost in Bangalore?
ESD flooring by Floorzy is priced from ₹90–150 per square foot depending on area size, specification (SD or C), substrate condition, and the earthing grid required. The earthing grid design and installation are included in Floorzy's ESD scope. Contact us for a detailed quotation.
Does the ESD floor need maintenance to retain its electrical properties?
Yes. The ESD floor must be cleaned with ESD-compatible floor cleaners (neutral pH, without wax or polish that can increase resistance). Annual resistance testing is recommended to verify electrical properties are maintained within specification. Floorzy provides maintenance guidelines and conducts annual testing on request.
What is the cost of ESD flooring per square foot in Bangalore?
Floorzy's ESD floor system in Bangalore is priced from ₹90–150 per square foot for the complete installed system — including surface preparation, conductive primer, ESD body coat, finish coat, copper earthing grid installation, and post-installation IEC 61340 electrical testing with compliance certificate. Contact us for a detailed project quotation.
How to test ESD floor after installation in an electronics factory?
ESD floor testing is conducted per IEC 61340-4-1 using a calibrated resistance meter with 5 kg electrodes. Measurements include point-to-point resistance and resistance-to-earth from multiple test points across the floor. Floorzy provides all post-installation testing and a signed IEC 61340 compliance certificate on project completion.
Is ESD flooring required for PCB assembly plant in India?
Yes. PCB assembly plants in India handling ESD-sensitive components require an EPA (Electrostatic Protected Area) as defined in IEC 61340-5-1. ESD-compliant flooring is a mandatory element of the EPA. Floorzy's ESD floor system for PCB assembly plants provides the compliant flooring element integrated with your overall ESD control programme.
What is a static dissipative floor and why is it used in data centres?
A static dissipative floor has electrical resistance of 10⁶–10⁹ Ω per IEC 61340-5-1. It provides a controlled path for electrostatic charges to dissipate safely to earth — preventing charge build-up on personnel that could damage servers, storage systems, and network hardware. It dissipates charge slowly enough to be safe for personnel while fast enough to prevent dangerous accumulation.
Can ESD flooring be installed in an occupied electronics factory in Bangalore?
Yes. Floorzy installs ESD flooring in occupied electronics factories in Bangalore using a section-by-section approach — completing and testing each section before starting the next. This eliminates the need for a full factory shutdown and is our standard approach for all electronics manufacturing ESD floor projects.
How do I find an ESD floor coating company near me in Bangalore?
If you're searching for an esd floor coating company near me in Bangalore, Floorzy — an industrial floor coating company in bangalore serving electronics manufacturing clusters across Electronics City, Peenya, and Whitefield — provides free on-site assessments, transparent esd epoxy floor coating cost estimates, IEC 61340 compliance testing, and section-by-section installation with no operational downtime.
How is Floorzy different from other floor coating contractors and companies?
Unlike many floor coating contractors offering generic anti-static paint, Floorzy engineers each ESD floor to a specific SD or C resistance classification, designs and installs the copper earthing grid, and provides signed IEC 61340 test certificates on handover — including projects requiring anti static floor coating for semiconductor plant cleanrooms. Among the industrial floor coating companies in Bangalore, Floorzy is the specialist choice for electronics, semiconductor, and data centre facilities where ESD compliance is non-negotiable.
Other Floorzy Services

More Industrial Flooring
Solutions From Floorzy

Beyond ESD flooring, Floorzy is a full-service industrial floor coating company in Bangalore offering complete industrial flooring solutions for every facility type.

🏗️
Heavy Duty Floor Coating
Forklift resistant, heavy duty industrial floor coating with heavy load floor strengthening solutions for warehouses
✨
Interior Semi Gloss Coating
A dust free floor coating for factory and office interiors with a showroom finish epoxy floor coating look
☀️
Exterior & Weatherproof Coating
Weatherproof floor coating outdoor for loading docks and yards with UV resistant floor coating protection
🚗
Car Park Floor Coating
Car park floor coating solutions and parking floor coating india for basement car park and multi level car park decks
📐
Floor Leveling & Screed Repair
Self leveling screed for industrial floor and factory floor screed repair from a trusted concrete floor leveling company
🎾
Sports Court Resurfacing
Acrylic sports court resurfacing for tennis, badminton, and basketball courts — a sports court resurfacing india specialist

Whether you need a dust free floor coating for factory interiors with a showroom finish epoxy floor coating look, heavy duty industrial floor coating with heavy load floor strengthening solutions for a warehouse, weatherproof floor coating outdoor and uv resistant floor coating for a yard, car park floor coating solutions and parking floor coating india for a basement deck, factory floor screed repair and self leveling screed for industrial floor work from a concrete floor leveling company, or sports court resurfacing india including acrylic sports court resurfacing — Floorzy applies the same technical rigor across every service line as it does for esd floor coating india projects.

Client Testimonials

What Our Clients Say

★★★★★

"Our warehouse looks completely different. No more dust complaints from workers. The team was professional and finished ahead of schedule. Highly recommend Floorzy."

R
Ravi Kumar
Google Review · Warehouse Manager, Bengaluru
★★★★★

"We were renting the shed and couldn't do major construction. Floorzy's overlay system was the perfect solution — looks premium and the cost was very reasonable."

S
Sunitha Menon
Google Review · Factory Owner, Mysuru
★★★★★

"The roofing heat shield reduced our indoor temperature significantly. Workers are more productive and we've seen real savings on cooling costs this summer."

M
Mohan Das
Google Review · Operations Head, Industrial Cluster
★★★★★

"Floorzy installed the ESD flooring in our PCB assembly unit. The team was knowledgeable, provided test certificates, and the surface has been performing well for over a year."

A
Anand Krishnamurthy
Google Review · Plant Head, Electronics City
★★★★★

"Very impressed with the quality of work on our basement car park. The line marking is clean, anti-slip surface is excellent, and it brightened the entire area. Worth every rupee."

P
Priya Natarajan
Google Review · Facility Manager, Whitefield
★★★★★

"We had a badly damaged factory floor with major level variations. Floorzy's team repaired it all before coating — the result is a level, professional floor we're proud to show clients."

V
Vijay Shetty
Google Review · MD, Manufacturing Unit, Peenya
★★★★★

"Floorzy did our badminton court surface and it is excellent. The grip is perfect, the line markings are very precise, and it was ready to play in just 3 days. Highly satisfied."

K
Karthik Rao
Google Review · Sports Club Owner, Jayanagar
★★★★★

"Our warehouse looks completely different. No more dust complaints from workers. The team was professional and finished ahead of schedule. Highly recommend Floorzy."

R
Ravi Kumar
Google Review · Warehouse Manager, Bengaluru
★★★★★

"We were renting the shed and couldn't do major construction. Floorzy's overlay system was the perfect solution — looks premium and the cost was very reasonable."

S
Sunitha Menon
Google Review · Factory Owner, Mysuru
★★★★★

"The roofing heat shield reduced our indoor temperature significantly. Workers are more productive and we've seen real savings on cooling costs this summer."

M
Mohan Das
Google Review · Operations Head, Industrial Cluster
★★★★★

"Floorzy installed the ESD flooring in our PCB assembly unit. The team was knowledgeable, provided test certificates, and the surface has been performing well for over a year."

A
Anand Krishnamurthy
Google Review · Plant Head, Electronics City
★★★★★

"Very impressed with the quality of work on our basement car park. The line marking is clean, anti-slip surface is excellent, and it brightened the entire area. Worth every rupee."

P
Priya Natarajan
Google Review · Facility Manager, Whitefield
★★★★★

"We had a badly damaged factory floor with major level variations. Floorzy's team repaired it all before coating — the result is a level, professional floor we're proud to show clients."

V
Vijay Shetty
Google Review · MD, Manufacturing Unit, Peenya
★★★★★

"Floorzy did our badminton court surface and it is excellent. The grip is perfect, the line markings are very precise, and it was ready to play in just 3 days. Highly satisfied."

K
Karthik Rao
Google Review · Sports Club Owner, Jayanagar

Protect Your Components.
Protect Your Reputation.

A single ESD event can cost more than the entire floor installation. Floorzy's static dissipative floor coating is an investment that pays for itself in the first year.

📞 +91 89517 65671 Get ESD Assessment
